H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 6/12/24-ch IP camera inputs (up to 6 MP)
Maximum 800 m for 1080p and 1200 m for 720p HDTVI signal
Up to 6 TB capacity per HDD
Compression and Recording
H.265 Pro+ can improve encoding efficiency and reduce the data storage cost
Full channel recording at up to 4 MP lite resolution
Storage and Playback Smart search for efficient playback
Support the 3rd party cloud storage
Network & Ethernet Access
PRAMA-ONLINE & DDNS (Dynamic Domain Name System) for easy network management
Maximum 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

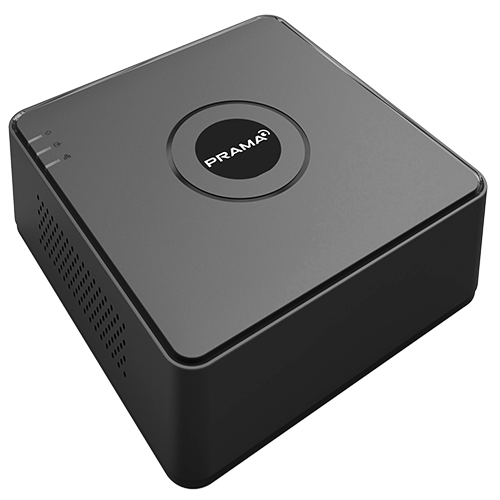

Product Specification
Brand
Prama
Product Type
DVR
Product Model
PT-DR1A04Q-K1
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate
32 Kbps to 6 Mbps
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps
Video Bit Rate
1-ch (up to 5-ch)
Enhanced IP mode on:2-ch (up to 6-ch), each up
to 4 Mbps Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Video And Audio
IP Video Input
2-ch (up to 10-ch)
1-ch (up to 5-ch)
Enhanced IP mode on:
2-ch (up to 6-ch), each up
to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ
4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the fIRst audio input
Synchronous Playback
4-ch
Network
Total Bandwidth
72 Mbps
Incoming Bandwidth (Enhanced IP Mode)
24 Mbps
Remote Connection
32
Network Protocol
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 6 TB capacity for each disk
USB Interface
Real panel: 2 × USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5
Consumption(Without HDD)
≤ 8 W
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Warranty
As Per Manufacturer Terms and Condition
