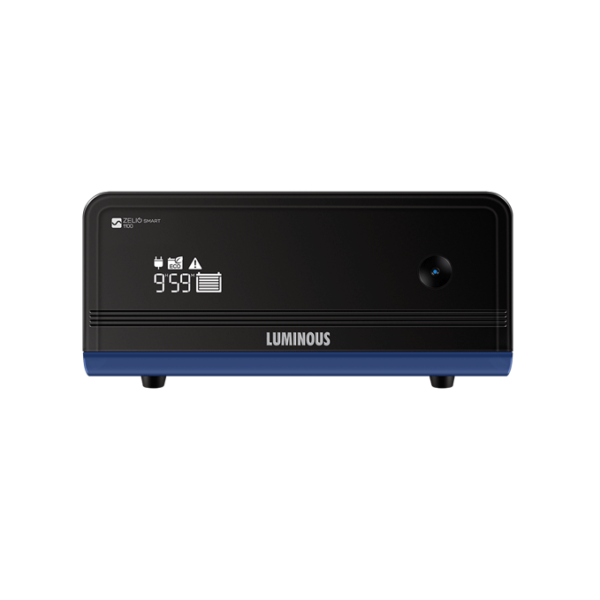

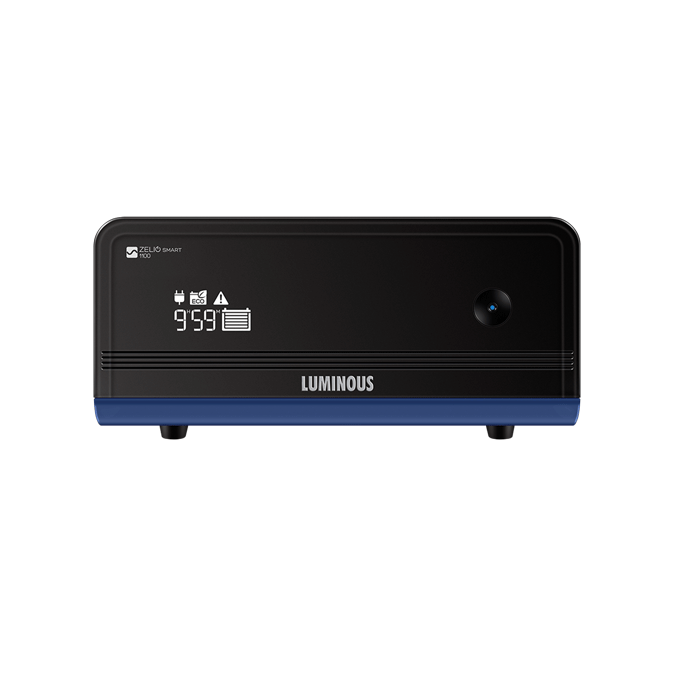

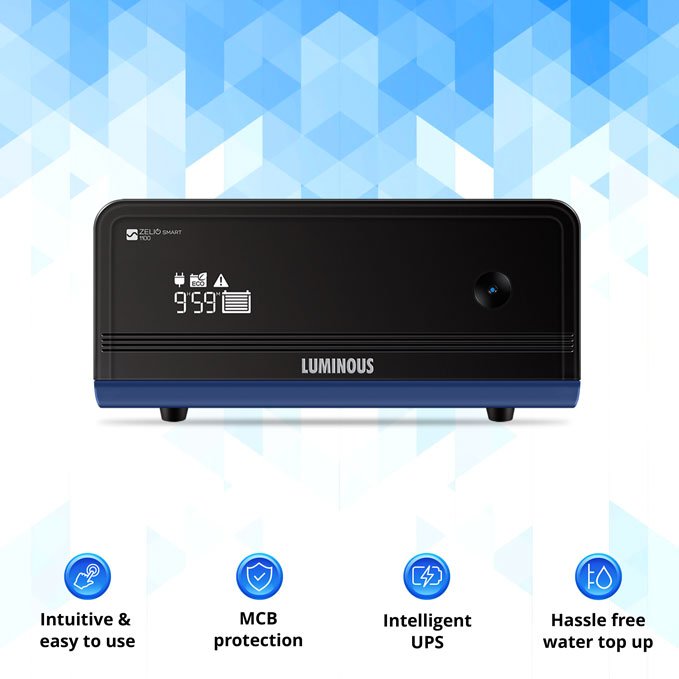

LUMINOUS SINEWAVE INVERTOR – ZELIO SMART 1100 – 12 VOLT

Overview

• Capacity- 900 VA, Maximum bulb load- 756 W
• Technology- Sine Wave Technology
• No of battery supported- One Battery (12V)
• 32 bit DSP processor, adaptive learning capability to optimally charge batteries and intelligently calculate backup and charging time
• Safe for sensitive appliances with sine wave out-put
• Smart display with unique indication that displays backup and charging time, along with mains on, mode, system fault and battery
• In UPS Mode, output voltage is kept in range of 180V to 260V – ensuring safety of sensitive appliances such as computers. In Eco Mode, voltage range is extended thereby reducing battery usage
• MCB for protection from input mains
• Bypass switch for supplying output directly from grid in case of Home UPS fault
• Noiseless operation with the help of low harmonic distortion
• Supports wide battery range, i.e. Flat Plate, Tubular & VRLA (SMF)

Specifications

• What’s in the box?

  1NInverter,1NManual

• Dimensions (in cm)

  27.5X24.8X12

• Technology

  Sinewave

• VA Rating

  900 VA

• Max Charging Current(in Amp)

  15

• No. of Batteries Supported

  1Battery

• Eco Mode Voltage Operation

  110V-285VAC

• UPS Mode Voltage Operation

  180V-265VAC

• Change over time (Milli Sec)

  <20

• Net Weight(In Kg)

  10

• Warranty

  36 Months (For detailed terms and conditions of warranty please refer to the warranty card supplied along with the product)
