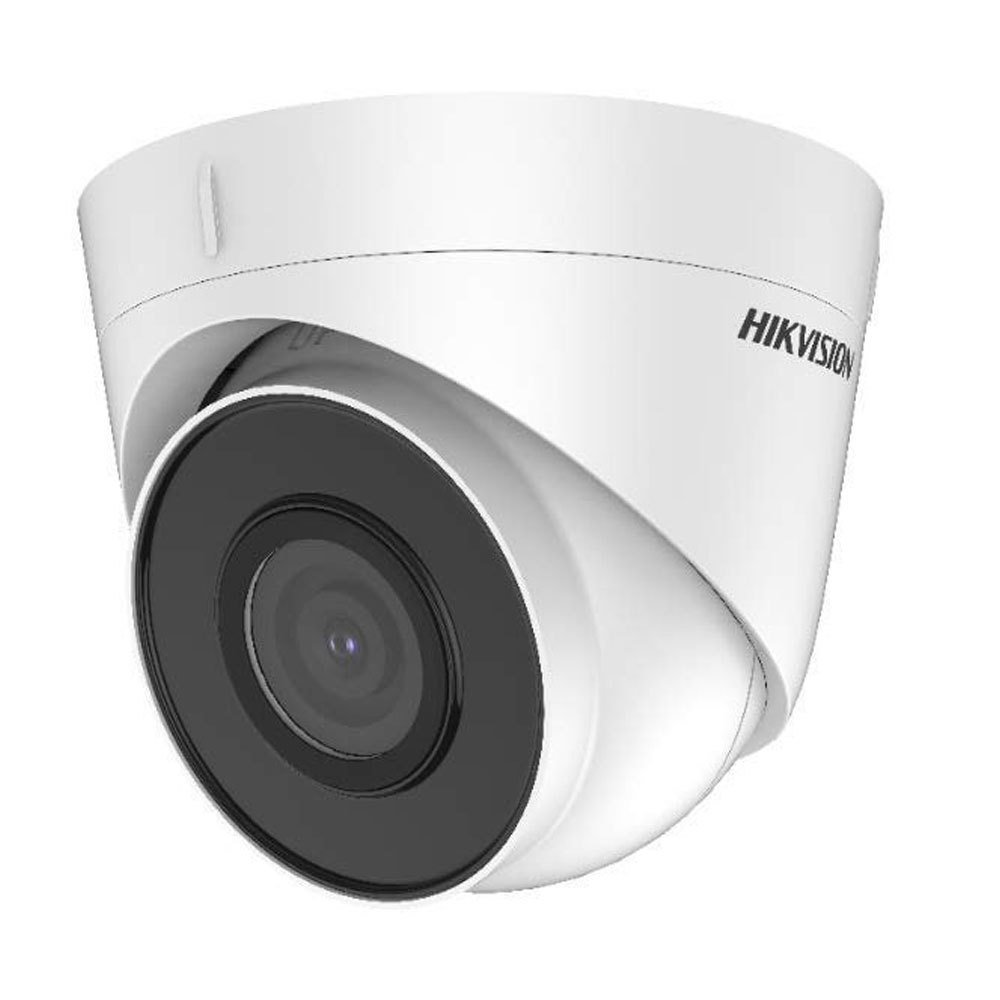

Camera
Image Sensor : 2 MP CMOS image sensor
Signal System : PAL/NTSC
Frame Rate : PAL: 1080p@25fps, NTSC: 1080p@30fps
Resolution : 1920(H)×1080(V)
Min. illumination : 0.02 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time : PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
Lens : 2.8 mm, 3.6 mm fixed lens
Horizontal Field of View : 103°(2.8 mm), 82.2°(3.6 mm)
Lens Mount : M12
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization : Internal synchronization
WDR(Wide Dynamic Range) : DWDR
Menu
Image Mode : STD/HIGH-SAT
AGC : Support
Day/Night Mode : Smart/color/BW(Black and White)
Backlight Compensation : Support
DWDR : Support
Language : English
Functions : Brightness, Sharpness, DNR, Mirror
Interface
Video Output : 1 HD analog output
General
Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply : 12 VDC±15%
Power Consumption : Max. 4 W
Material : Plastic
IR Range : Up to 20 m
Dimension : Ø 89.9 mm × 71.3 mm (Ø 3.54″ × 2.81″)
Weight : Approx. 120 g (0.26 lb.)
